产品型号：

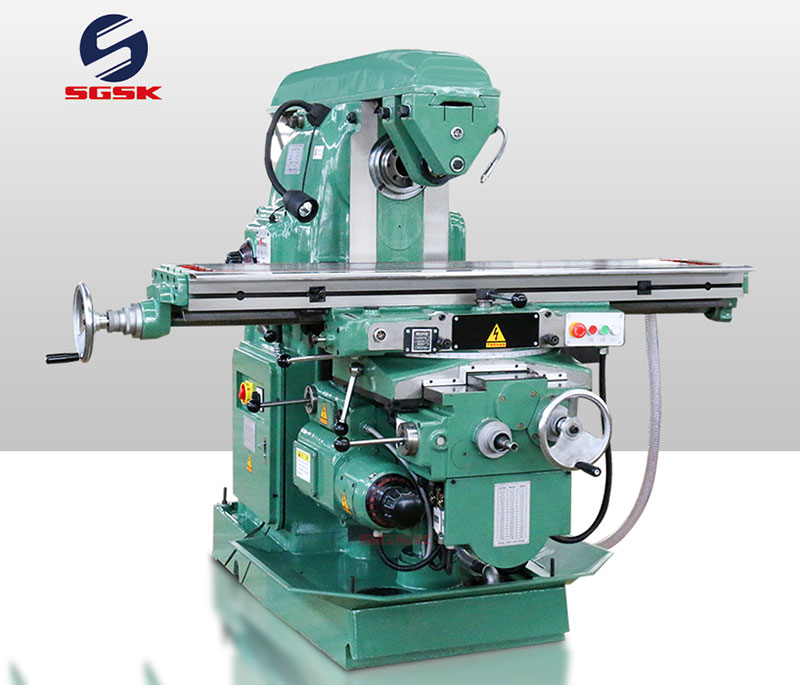

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disccutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
特点
● Using rectangular guide machine is Rigid good,
● Work table and guide rail through the ultra audio spark quenching.
● Work bench X. Y.Z are gear drive automatic feed and manual operation
应用案例
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disccutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
产品主要技术参数
| Specifications | Units | X6140 |
| Table size | mm | 1700×400 |
| Table load | kg | 800 |
| T slot(number-width-pitch) | mm | 3-18-90 |
| Table travel | mm | 900/880315/300350/330 |
| Range of table feed | mm /min | XY:23.5-1180Z:8-394 |
| Rapid speed of table | mm /min | XY:2300Z:770 |
| Spindle taper | ISO50 7:24 | |
| Spindle speed range | rpm | 30-1500 (18 steps) |
| Swivel angle of table | ° | ±45 |
| Distance between spindle axis and table surface | mm | 30-380 |
| Spindle motor power | kw | 11 |
| Feed motor power | kw | 1.5 |
| Weight | kg | 3950/4200 |
| Overall dimension | mm | 2560×2160×2100 |
