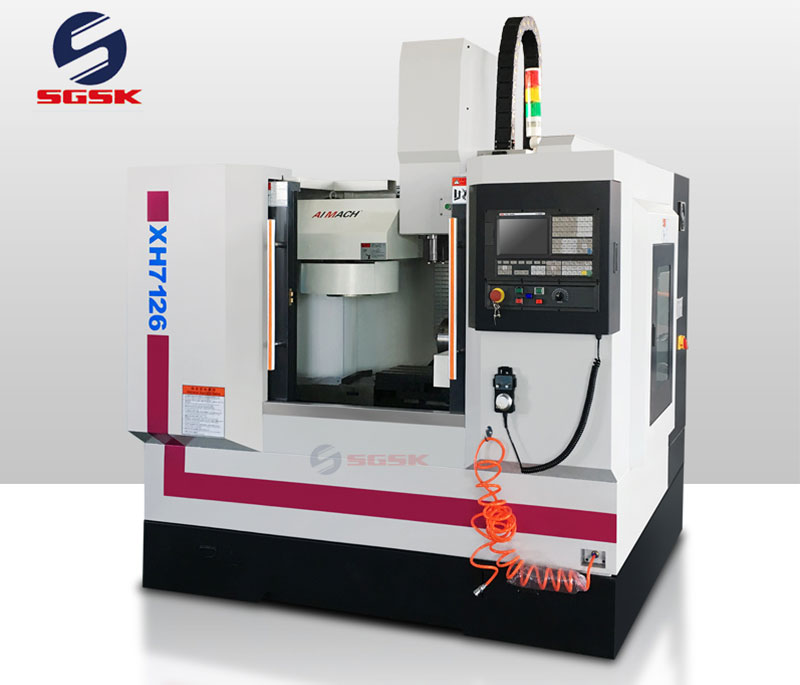

XH7126 CNC Vertical Machining Center

立即咨询下一款产品

应用案例

Specifications	Units	XH7126
Table size	mm	650x260
X axis travel	mm	450
Y axis travel	mm	300
Z axis travel	mm	400
Max. worktable load	kg	200
T slot(number-width-pitch)		3-14x80
Max. spindle speed	rpm	6000
Spindle taper	mm	BT40
Main motor power	kw	2.2
X/Y/Z rapid traverse speed	m/min	15/15/15
Cutting feed speed	mm/min	1-6000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	360
Distance between spindle nose and worktable surface	mm	90-520
Positioning accuracy	mm	±0.015
Repeat positioning accuracy	mm	±0.0075
Tool magazine		12 Armless/(Optional: Arm 16 )
Max. tool diamete	mm	Ø130
Max. tool diameter	kg	8
Machine weight	kg	2400
Overall dimension	mm	2200x1900x2200
